Sidewall semi trailer for sale was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.
40T sidewall trailer developed on the basis of a container flatbed trailer, the drop side trailer has a side wall structure design. The sidewall semi trailer for sale in Zimbabwe Harare can be use to load the containers after adopt the contianer locks for it.
40T Sidewall Semi Trailer for Sale in Zimbabwe Harare
40T Sidewall Semi Trailer for Sale in Zimbabwe Harare
40T Sidewall Semi Trailer for Sale in Zimbabwe Harare
Dimension(mm): 12500mm*2500mm*2350mm
Trailer Sides: 600mm sidewall
Loading capacity(ton): ≤40T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. Sinotruk Zimbabwe adopts high strength steel material to manufacture the sidewall semi trailer for sale, it can make the trailer have a higher loading capacity and a longer service life.
2. To make sure the service life of the 40t sidewall semi trailers, all the spare parts we adopt are World Famous brand.
3. Trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
4. Hight Quality side wall, make sure the stable and safety of the loads.

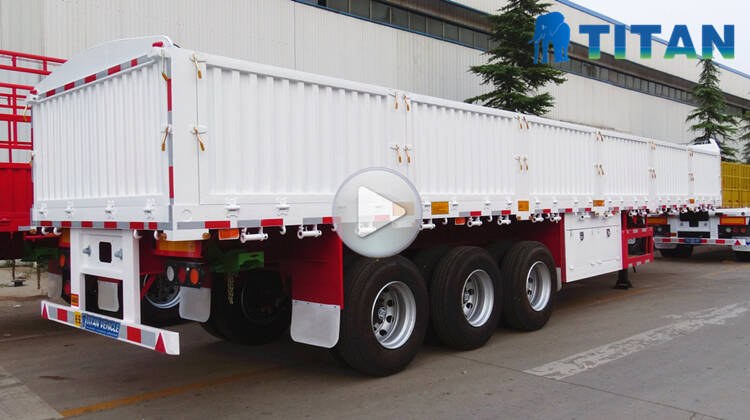

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.
Welcome to contact us !
