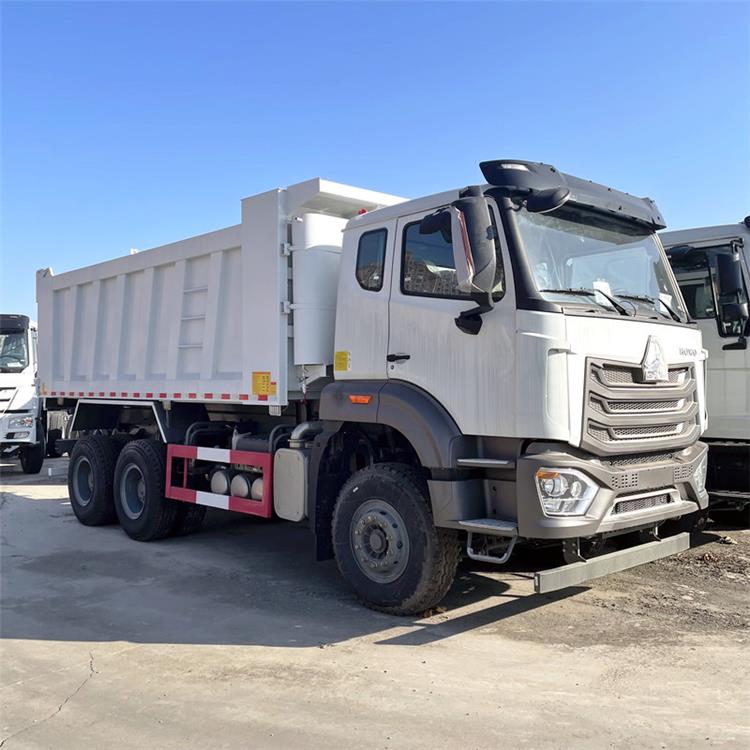

Howo N7 Dump Truck

Description:

HOWO n7 dump truck is used for transporting loose material (such as sand, gravel, or demolition waste) for construction, quarry, mine site etc.

Sinotruk n7 dump truck price own the elegant appearance, strong operation system and excellent safety. Since the howo n7 dump truck can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs.

You can choose cargo body with front lifting type or middle lifting type which you prefered. The hydraulic sytem using HYVA brand or Domestic famouse brand.

Sinotruk Howo N7 Dump Truck Price in Zimbabwe Harare

Specification:

MODEL: ZZ3255N3846B1

ENGINE:

Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water

cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system

Maximum output: 371PS (273kW) at 2000 rpm

Maximum torque: 1560Nm at 1200-1500rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse  Ratio: 5.73

FRONT AXLE: New HF9 series, with drum brake system

REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

STEERING: D50, hydraulic steering with power assistance

WHEELS&TYRES:

Rims: 8.5-20,10 hole-steel

Types: 12.00R20

CARGO BODY: 5600*2300*1500, bottom 8mm, side 6mm, Middle lift system

DRIVER CAB:

H77L cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner

DIMENSIONS(in mm):

Wheel base (mm): 3800+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/2295

Approach angle(°):19

Departure angle(°):20

Overall Dimension (mm):9745x2496x3550

WEIGHT(in kg):

Permissible loading capacity (kg):13000

Dead weight (kg):12500

Gross vehicle weight (kg):25000

Front axle loading capacity (kg):9000

Rear axle loading capacity (kg):2*16000

PERFORMANCE:

Maximum driving speed(km/h):75(reference data)

Maximum gradeability (%):36

Minimum ground clearance(mm):314

Minimum turning radius (m):15

Fuel consumption(L/100km):40(reference data)
