Sinotruk howo 336 hp cargo truck chassis is for customer to build their own truck body, like dump box, fuel tanker, cargo box ect to meet different needs.
The potential for diversified bodywork brought by ample sinotruk howo 6x4 cargo truck chassis space is also the detail that improves the overall quality of the truck.

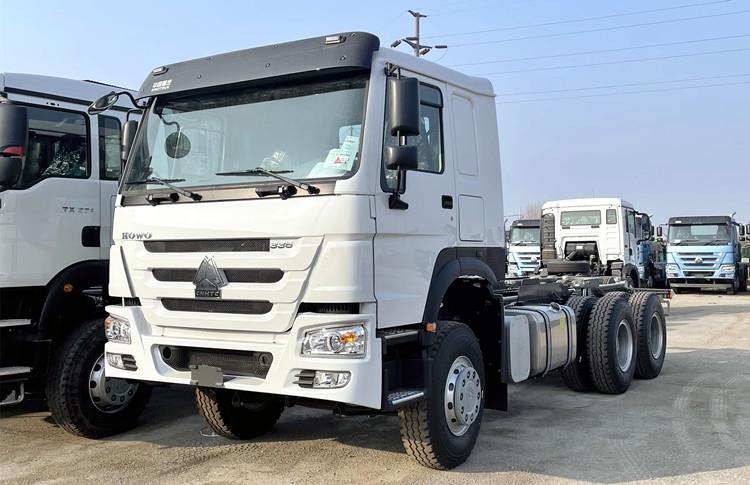

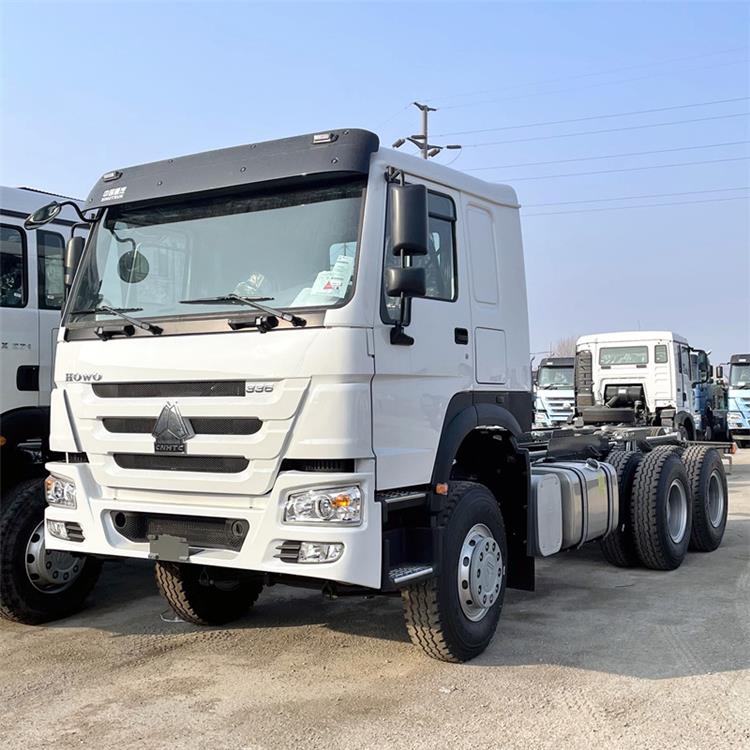

Sinotruk Howo 336 10 Wheel Cargo Truck Chassis for Sale in Zimbabwe Kwekwe
Details of Sinotruk Howo 336 10 Wheel Cargo Truck Chassis for Sale in Zimbabwe Kwekwe
MODEL: ZZ1257S4341
CABIN:

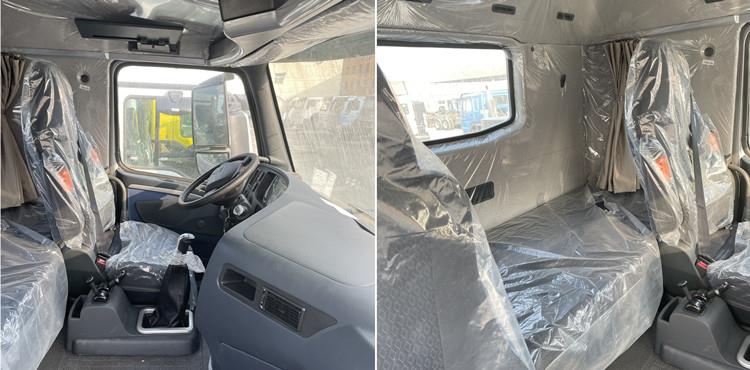

HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
ENGINE:
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Emission Standard: Euro 2
6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Displacement: 9.726 L
TRANSMISSION: HW19710
FRONT AXLE: HF9, 9000 KG
REAR AXLE: HC16, 2x16000 KG (double reduction,ratio:4.42)
STEERING: ZF8118
WHEELS&TYRES: 12.00R20, with one spare tire.
CHASSIS:
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members
Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
BRAKE:
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
FUEL TANK: 400L+400L
Welcome to contact us !
