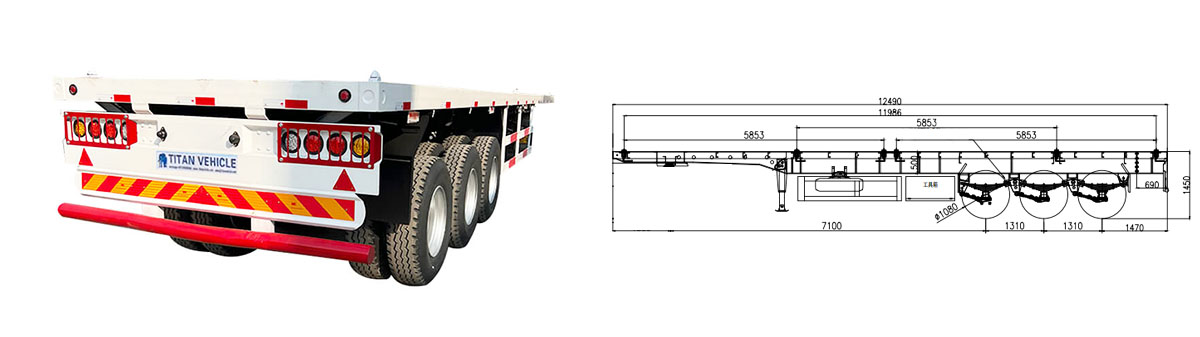

Dimension(mm): 12500*2500*1580mm ( depends on final design )

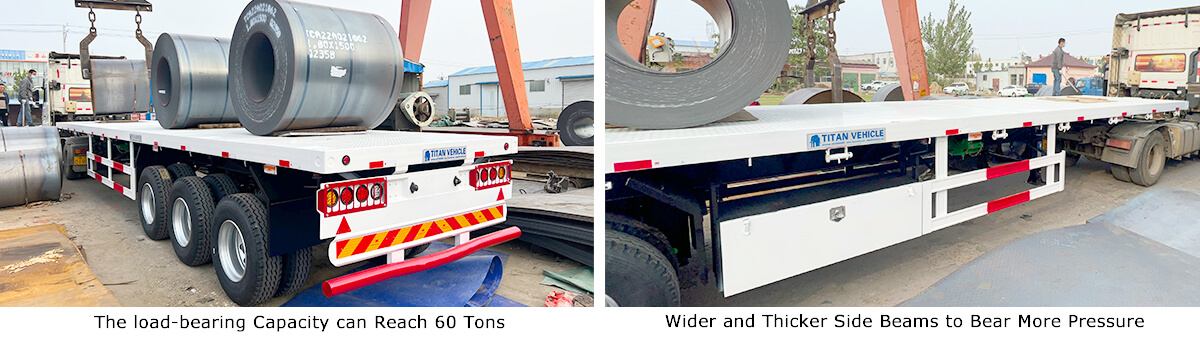

Loading capacity(ton): ≤60T

Material: Q345 steel

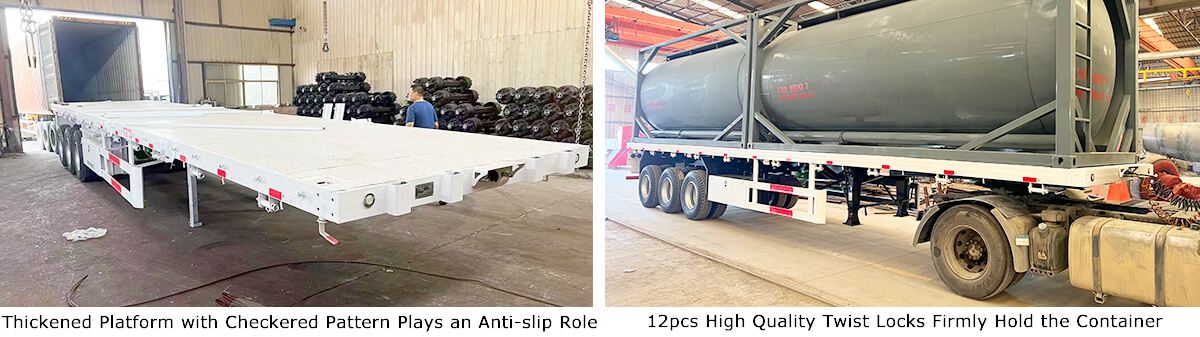

Platform: 3mm-thick checkered non-slip plate

Tire: 12R22.5, 12 units

Rim: 9.00-22.5 or 9.75-22.5

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 inch

Suspension:  Mechanical suspension ( Air suspension optional )

Twist Locks: 4,8,12 sets (lifting or screw type)

Brake Valve: WABCO

Landing Gear: JOST brand

Light: LED light
