3 Axle Semi Dump Trailer for Sale in Zimbabwe
Chapter 1. What Are the Main Structures of a Dump Semi Trailer?
Chapter 2. What Is the Loading and Unloading Process of a Dump Semi Trailer?
Chapter 3. What Is the Manufacturing Process of a Dump Semi Trailer?
Chapter 4. What Should Be Paid Attention to When Using a Dump Semi Trailer?
Chapter 5. What Parts of a Dump Semi Trailer Need Maintenance?
Its main structure mainly includes a body, cargo box, hydraulic system, chassis, kingpin, electrical system, landing gear, and rear door. These structures work together to enable 3 axle dump semi trailer for sale in Zimbabwe to efficiently and safely complete the task of transporting bulk materials. Whether it is a construction site, a mining area, or other places where bulk materials need to be transported, the 3 axle dump semi trailer has demonstrated its excellent performance and reliability, becoming an indispensable and important tool in modern logistics and transportation.
1. Car body
The body of the 3 axle dump semi trailer for sale in Zimbabwe is made of high-strength steel and has excellent strength and stability. It is designed not only to withstand the pressure of heavy loads but also to withstand various shocks and vibrations that may be encountered during transportation. Only if the body has sufficient durability and corrosion resistance can the service life of the 3 axle dump semi trailer be extended.
2. Cargo box
The cargo box is the core part of the 3 axle dump semi trailer for sale in Zimbabwe. It is designed in a rectangular or trapezoidal shape for easy loading and unloading. The interior of the cargo box adopts an anti-slip design, which can help the material flow smoothly when tilting and reduce the situation of residual materials. Only when the tilt angle of the cargo box is reasonably designed can the material be dumped quickly and thoroughly during unloading, thereby greatly improving work efficiency.
3. Hydraulic system
The tilting mechanism is an important part of the 3 axle dump semi trailer, and a hydraulic system is used to achieve the tilting of the cargo box. As a key component, the hydraulic cylinder adjusts the tilt angle through the control valve, so that the cargo box can reach the required tilt angle in a short time, ensuring that the material can be unloaded smoothly. The design of the hydraulic system not only improves the convenience of operation but also enhances the safety of unloading and avoids accidents caused by improper tilting.
4. Chassis
The chassis part includes axles, tires suspension systems, etc., to ensure stability and safety when loading. The design of the chassis is crucial, as it can effectively disperse the load and reduce the impact on the road. The suspension system uses air suspension or steel spring suspension to adapt to different road conditions and provide better driving comfort and stability. High-quality tires ensure good grip and wear resistance and improve driving safety.
5. Rear door
The design of the side walls and rear doors is also very important. Some 3 axle dump semi trailers are equipped with openable side walls and rear doors to facilitate the loading and unloading of materials. This design makes it more flexible during loading and unloading, can adapt to different operating requirements, and improves work efficiency.
3 Axle Semi Dump Trailer for Sale in Zimbabwe
Loading and unloading process of dump semi trailer:
The loading and unloading process of dump semi trailer is a systematic operation involving multiple steps and precautions to ensure safety and efficiency. Before loading, first, make sure that the semi-trailer is parked and supported with outriggers to prevent tilting or movement during loading. At the same time, check the working status of the cargo box and the tilting system to ensure that the hydraulic system is operating normally to avoid malfunctions in subsequent operations.
When loading materials, the operator will use a loader, excavator, or other appropriate equipment to load bulk materials into the cargo box. At this time, the operator should pay attention to the type and characteristics of the material to select the appropriate loading equipment and ensure that the material is evenly distributed in the cargo box to maintain a stable center of gravity and prevent tilting or imbalance during transportation. After loading, be sure to check the locking status of the cargo box and ensure that the rear door and side walls of the cargo box are firmly closed to avoid material spillage or falling during transportation.
During the unloading process, first, choose a safe and flat unloading location and ensure that it complies with relevant safety regulations and operating requirements. When driving the dump semi trailer for sale in Zimbabwe into the unloading area, it is necessary to maintain sufficient space in the unloading location to facilitate the tilting of the cargo box and the smooth unloading of materials. Next, start the hydraulic system and slowly tilt the cargo box. The driver can adjust the tilt angle through the control valve to ensure that the material can be unloaded smoothly and avoid material accumulation or uneven dumping due to tilting too quickly. Under the action of gravity, the material will flow out of the cargo bucket. The driver needs to monitor the unloading process throughout the process to ensure smooth unloading and avoid splashing or scattering of materials during unloading, which may cause safety hazards.
3 Axle Semi Dump Trailer for Sale in Zimbabwe
1. Design and planning
The first step in manufacturing a 3 axle dump semi trailer is design and planning. Manufacturers will communicate with customers to understand their specific needs, including body size, load capacity, and functional requirements. Engineers then use computer-aided design (CAD) software to draw detailed blueprints to ensure that the design meets customer needs and is feasible for production.
2. Material preparation
After the design is completed, the material preparation stage begins. Manufacturers usually choose high-strength steel to ensure the durability and load-bearing capacity of 3 axle dump semi trailer for sale in Zimbabwe. According to the design requirements, the procurement team will contact suppliers to obtain the required steel, hydraulic components, electrical systems, and other materials to ensure that the quality of the materials meets the standards.
3. Cutting and forming
After the materials are ready, workers will cut the steel according to the design drawings to form components such as the frame, cargo box and chassis. After cutting, the steel plate is processed into a specific shape using processes such as stamping and bending to meet the design requirements. This process requires high-precision equipment and technology to ensure the accurate size and shape of the components.
4. Welding and assembly
The parts after cutting and forming will be welded and assembled. Workers will connect the various components by welding to form a preliminary structural framework. The quality of welding directly affects the strength and safety of the 3 axle dump semi trailer, so the welding process needs to be strictly controlled. Subsequently, parts such as the cargo box, chassis, and outriggers will be gradually assembled to ensure that the components are tightly combined to form a complete body structure.

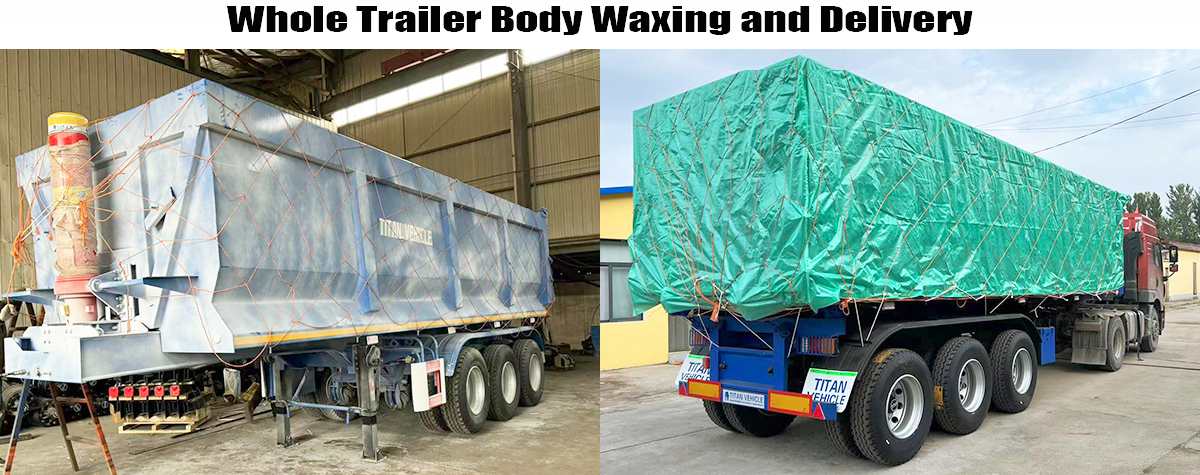

5. Painting and anti-corrosion treatment
After assembly, the body will be painted and treated with anti-corrosion paint. First, the welded structure will be cleaned to remove grease and dirt to ensure the adhesion of the coating. Next, an anti-rust coating is applied, usually by spraying or dipping, to enhance weather resistance and extend service life. Finally, the topcoat is applied, which not only improves the appearance but also enhances the protective performance.
6. Install the system
After the painting is completed, the system installation stage begins. First, the hydraulic system, including the hydraulic cylinder and related pipelines, is installed to ensure the normal operation of the tilting mechanism. The installation of the hydraulic system needs to be precise to ensure its stability and reliability during use. Subsequently, the electrical system, including lights, brake systems, and other electrical components, is installed to ensure the safety and functionality of the 3 axle dump semi trailer for sale in Zimbabwe.
After all systems are installed, a final inspection and test is a crucial step. The manufacturer will conduct strict quality inspections on the 3 axle dump semi trailer, including welding strength, hydraulic system function, and electronic equipment, to ensure that each component meets the standards. In addition, functional tests will be carried out to simulate actual use, and test the dumping function and safety performance to ensure that all indicators meet the design requirements.
3 Axle Semi Dump Trailer for Sale in Zimbabwe
When using 3 axle dump semi trailer, in order to ensure safe and efficient operation, users should pay attention to several key aspects. First, it is essential to conduct a comprehensive pre-operation inspection before starting to use it. This includes checking the overall condition of the trailer, such as the air pressure and wear of the tires, the sensitivity of the brake system, the normal operation of the lights, and the integrity of the hydraulic system to ensure that there is no oil leakage. In addition, the oil level of the hydraulic oil must be within the recommended range to avoid malfunctions caused by insufficient oil. The fixing devices of the cargo also need to be carefully checked to ensure that the cargo will not slide or fall during transportation.
During driving, it is key to maintain safety and stability. When driving, you should control the appropriate speed, avoid sudden acceleration and braking, and be particularly careful when turning and going downhill to reduce the impact on the cargo and trailer. Due to the length and width of the 3 axle dump semi trailer for sale in Zimbabwe, special attention should be paid when turning to ensure that the body of the vehicle does not collide with surrounding obstacles. In bad weather or on uneven roads, you should be cautious when driving, reduce the speed appropriately, and keep a safe distance.
Unloading is an important part of the use of the 3 axle dump semi trailer and needs to be operated with caution. Choose a flat and solid ground for unloading, and avoid unloading on unstable ground to prevent tilting or sinking. Set up obvious warning signs in the unloading area to remind people around to pay attention to safety. If necessary, safety fences should be set up to ensure the safety of the unloading area. When unloading, slowly lift the cargo bucket, observe the unloading process, ensure that the materials land safely, and avoid injuries or damage caused by falling materials.
When loading goods, reasonable operation can effectively avoid accidents and damage. Make sure that the goods are evenly distributed in the cargo bucket to keep the center of gravity stable and avoid rollover or loss of control caused by the center of gravity shift. At the same time, strictly follow the maximum load capacity provided by the manufacturer and avoid overloading to ensure the controllability and safety of the 3 axle dump semi trailer for sale in Zimbabwe. In addition, confirm that the nature and weight of the material being carried are suitable for the design of the trailer to avoid damage caused by improper transportation.
3 Axle Semi Dump Trailer for Sale in Zimbabwe
Through regular maintenance, the safety and service life of the 3 axle dump semi trailer can be significantly improved, ensuring that transportation tasks can be completed safely and smoothly in various working environments. Through good maintenance habits, users can effectively extend the service life of the dump semi trailer for sale in Zimbabwe and ensure its reliability and safety in the transportation industry.
1. Body and cargo box
The appearance inspection of the body and cargo box is equally important. Regularly check the body and cargo box for cracks, corrosion or other damage, and repair them in time to prevent further deterioration. In addition, keep the coating intact and perform rust prevention when necessary to extend the service life of the body and prevent structural damage caused by corrosion.
2. Chassis and frame
The chassis and frame are the basic structure of the trailer. Check the connections of the chassis and frame regularly to ensure that there is no looseness or corrosion. Keep the chassis clean and properly lubricate the moving parts to reduce wear and extend the service life. Regular cleaning and lubrication not only improve the performance of the trailer, but also prevent failures caused by dirt and rust.
3. Tires
The tires are the only part of the trailer that contacts the ground, and their condition directly affects driving safety. Check the tire pressure regularly to ensure that it meets the manufacturer's recommended standards. Too low tire pressure will increase fuel consumption and affect handling. In addition, check the wear of the tires and replace damaged or severely worn tires in time to avoid dangerous situations such as tire blowouts during driving.
4. Hydraulic system
The hydraulic system is a key component of the dump semi trailer for sale in Zimbabwe, which directly affects the efficiency and safety of unloading. Check the oil level of the hydraulic oil regularly to ensure that it is within the normal range to ensure the normal operation of the hydraulic system. At the same time, attention should be paid to the quality of the hydraulic oil and dirty or deteriorated hydraulic oil should be replaced in time to prevent damage to the system. In addition, the inspection of the oil pipes and joints should not be ignored. Regular inspections should be conducted for wear, oil leakage or cracks to ensure that the connections are tight to avoid failures during work.
5. Suspension system
The state of the suspension system directly affects the driving stability and comfort of the dump semi trailer for sale in Zimbabwe. Regularly check whether the springs and shock absorbers of the suspension system are normal, and whether there is leakage or damage, to ensure the stability of the vehicle during driving. At the same time, check whether the connecting parts of the suspension system are loose and ensure that they are firmly fixed to avoid unexpected situations during driving.
3 Axle Semi Dump Trailer for Sale in Zimbabwe
