Model:

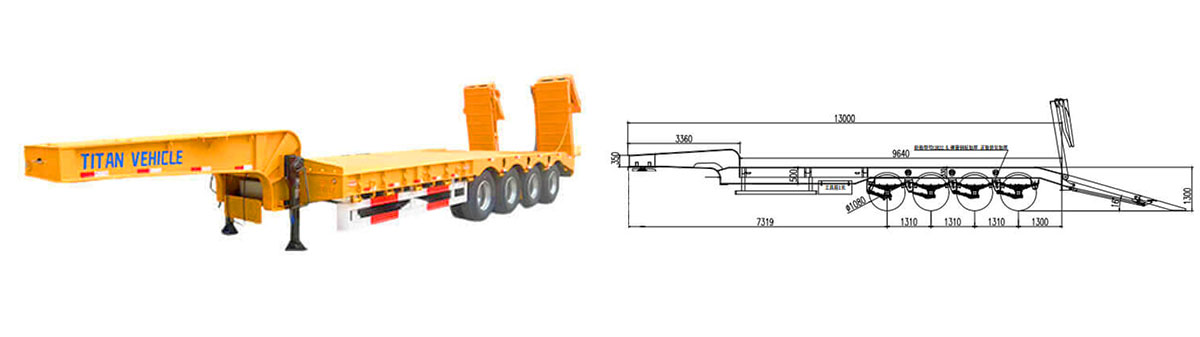

Overall dimension: 15800mm * 3000mm *3750mm

Loading capacity(T): 100 tons

Axle: 4 axle , 13T/16T, FUWA / BPW / TITAN Brand

Tire: 12units, 11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

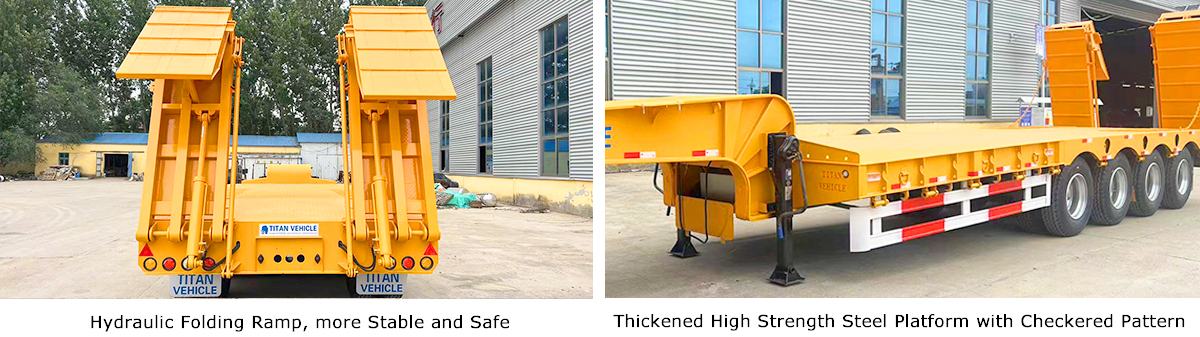

Ramp: Spring ramp

Brake Valve: WABCO

ABS: Optional

Color: Optional
