Fast Delivery 4 Axle 100 ton Lowbed Trailer for Sale in Zimbabwe
Chapter 1. What Are the Components of the Lowbed Trailer Frame?
Chapter 2. What Are the Fixings on the Lowbed Trailer?
Chapter 3. What Are the Chassis Structures of the Lowbed Trailer?
Chapter 4. What Are the Welding and Painting of the Lowbed Trailer Like?
Chapter 5. What Are the Precautions for Shipping a Lowbed Trailer?
Trailer chassis: The chassis is the basic structure of lowbed trailer for sale in Zimbabwe. It is usually made of high-strength steel and has a strong load-bearing capacity. The chassis design is low, which is convenient for transporting tall and large cargo. This design improves the stability of the center of gravity and ensures driving safety.
Frame: The frame is the main load-bearing component of the trailer, providing support for the entire structure. The frame is usually composed of a main beam made of high-strength steel, and multiple longitudinal beams and cross beams. This structure ensures the strength and stability of the trailer when carrying heavy objects. Ensure the overall carrying capacity of the trailer.
Low-bed: The low-bed part is the cargo area of the trailer. It is usually designed as a flat and spacious structure to facilitate the loading and unloading of heavy cargo. The low-bed has a low height, which effectively lowers the center of gravity and enhances driving stability.
Unloading device: Some lowbed trailer for sale in Zimbabwe are equipped with unloading devices. These devices include hydraulic lifting platforms or ramps to facilitate the loading and unloading of heavy equipment. Unloading devices can improve work efficiency and reduce the need for manual handling.
Fixing devices: To ensure the safety of cargo during transportation, lowbed trailer for sale in Zimbabwe are equipped with various fixing devices. These devices include tie-down straps, chains, and bolts. They ensure that the cargo does not slide or tip over during travel.
Axles and tires: lowbed trailer for sale in Zimbabwe are generally equipped with multiple axles. Axles disperse the load and increase the carrying capacity. Each axle is equipped with a tire under it to ensure smooth travel during transportation. The position of the axle is usually adjustable to accommodate cargo of different lengths and widths.
Suspension system: The suspension system connects the axle to the frame. Its main function is to absorb road shock and provide a smooth driving experience. Common suspension systems include air suspension and steel spring suspension. Each suspension system has its advantages and disadvantages, and the choice depends on the use requirements.
Auxiliary support legs: To enhance stability, lowbed trailer for sale in Zimbabwe are usually equipped with adjustable auxiliary support legs. These support legs provide additional support when the trailer is parked. They prevent the trailer from tilting during loading and unloading, ensuring safety.
Fast Delivery 4 Axle 100 ton Lowbed Trailer for Sale in Zimbabwe
Before loading and unloading, preparation work is first required. This includes checking the condition of the trailer and the transport equipment to ensure that all parts are in good working order and there is no damage or wear. At the same time, ensure that the loading and unloading site is flat and avoids slopes to reduce the risk of accidents. Choose a dry, solid ground for safe operation.
Next, positioning the trailer is a key step. Park the lowbed trailer for sale in Zimbabwe and ensure that it is parallel to the ground. You can use a level to check the level of the trailer to ensure that there is no tilt during loading and unloading. In addition, make sure that the brakes of the trailer are locked to prevent movement during operation.
After ensuring that the trailer is stable, it is necessary to use auxiliary support legs. Lower the auxiliary support legs to ensure the stability of the trailer during loading and unloading. The auxiliary support legs should be evenly spaced to provide additional support and prevent the trailer from tipping or swaying during operation. Make sure the support legs are firmly in contact with the ground to increase overall stability.
When loading cargo, if there is a ramp or lifting platform, use them to move the cargo onto the low bed. First, secure one end of the ramp to the trailer's low bed to ensure it is stable. Then, slowly push or pull the cargo up the ramp, ensuring that it remains balanced throughout the process. Pay attention to the center of gravity of the cargo to ensure that it is balanced on the trailer.
When using the ramp, first check that the structure of the ramp is intact and make sure there are no cracks or damage. Next, secure one end of the ramp to the trailer's low bed to ensure that it does not slide during use. When pushing the cargo onto the ramp, maintain a slow and steady speed to avoid rapid movement that may cause loss of control. At the same time, make sure someone is behind to assist in keeping the cargo balanced and prevent it from tipping or falling while the cargo is on the ramp.
Once the cargo has been successfully loaded onto the lowbed trailer for sale in Zimbabwe, the next step is to secure the cargo. Use tie-downs, chains and other fixings to secure the cargo to the trailer, making sure that the fixings are evenly distributed to prevent the cargo from moving during transport. Check each fixing point to make sure they are all fastened in place to ensure safe transport.
Before starting transport, always conduct a safety check. Make sure all fixings are intact and the cargo is secure. Check the condition of the trailer again to make sure there are no loose parts. Also, make sure that all operators are in a safe area to avoid accidents during loading and unloading.
Finally, when unloading the cargo, you need to reverse the operation and use a ramp or lifting platform to unload the cargo. First, make sure that the ramp or lifting platform is in good condition. Slowly move the cargo from the trailer, pay attention to keep a safe distance, and make sure that no one is standing in the danger zone during the operation. During the entire unloading process, stay alert and ensure that the surrounding environment is safe.
Fast Delivery 4 Axle 100 ton Lowbed Trailer for Sale in Zimbabwe
Choosing the right 4 axle lowbed trailer for sale in Zimbabwe involves several considerations to ensure it can meet your transport needs. Firstly, weight capacity is an important consideration. You need to determine the weight of the goods you need to transport, and 4 axle lowbed trailer for sale in Zimbabwe has a high load capacity, so it is important to ensure that the selected trailer can meet the maximum load requirements. In addition, the center of gravity of the goods needs to be considered to ensure that it is evenly distributed to prevent tilting during driving.
Secondly, the size specifications are also an important factor when choosing a 4 axle lowbed trailer for sale in Zimbabwe. You need to confirm that the length and width of the trailer are suitable for your goods and consider the loading and unloading space to ensure that the trailer size can accommodate your goods. At the same time, it is also important to understand the height restrictions at your destination to ensure that the goods do not exceed the specified height during transportation.
Chassis height is another key factor. Choosing a 4 axle lowbed trailer for sale in Zimbabwe with a lower chassis can lower the center of gravity and improve stability, especially when transporting tall goods. In addition, ground clearance should also be considered to avoid scratches on uneven roads or ramps.
The choice of suspension system should not be ignored either. You should choose a suitable suspension system, such as air suspension or steel spring suspension, to ensure stability and comfort when transporting heavy goods. Some trailers also provide adjustable suspension systems to adapt to different loads and road conditions.
In terms of materials and workmanship, choosing a 4 axle lowbed trailer for sale in Zimbabwe made of high-strength steel can improve its durability and carrying capacity. At the same time, it is also important to check the welding and assembly quality of the trailer to ensure that its structure is strong and can withstand high-intensity transportation.
The configuration of accessories and equipment is also a factor to consider when choosing a 4 axle lowbed trailer for sale in Zimbabwe. Confirm that the trailer is equipped with sufficient fixings, such as lashing straps and chains, to ensure the safety of the goods during transportation. In addition, consider whether it is necessary to equip unloading equipment such as ramps and lifting platforms to improve work efficiency.
Fast Delivery 4 Axle 100 ton Lowbed Trailer for Sale in Zimbabwe

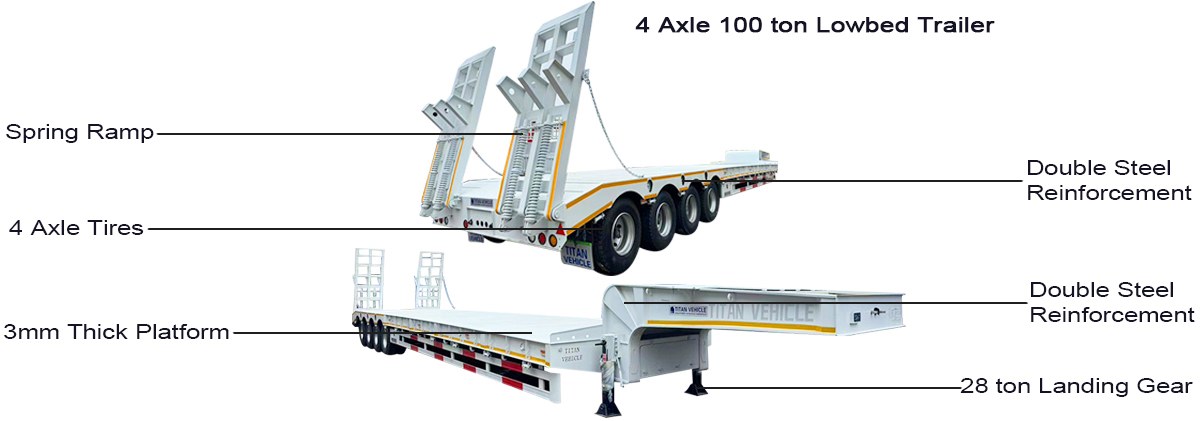

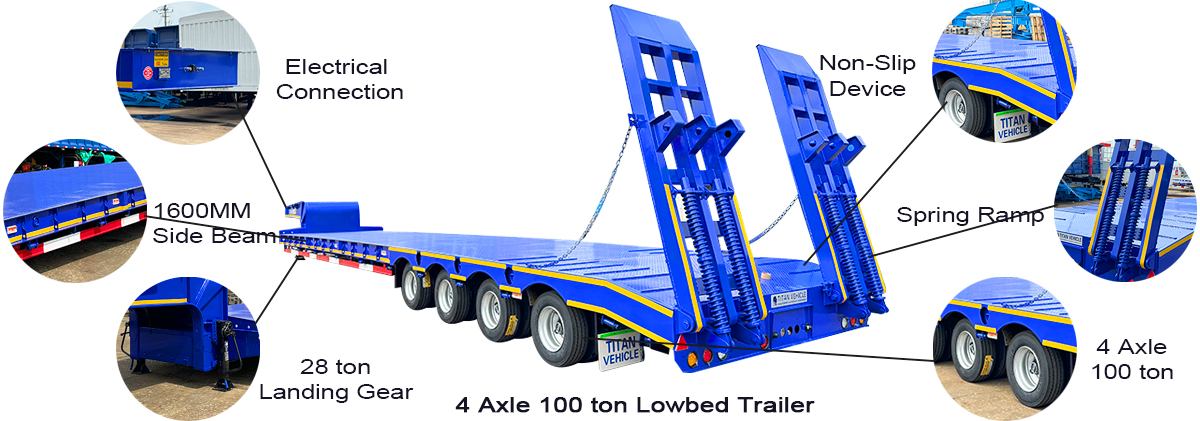

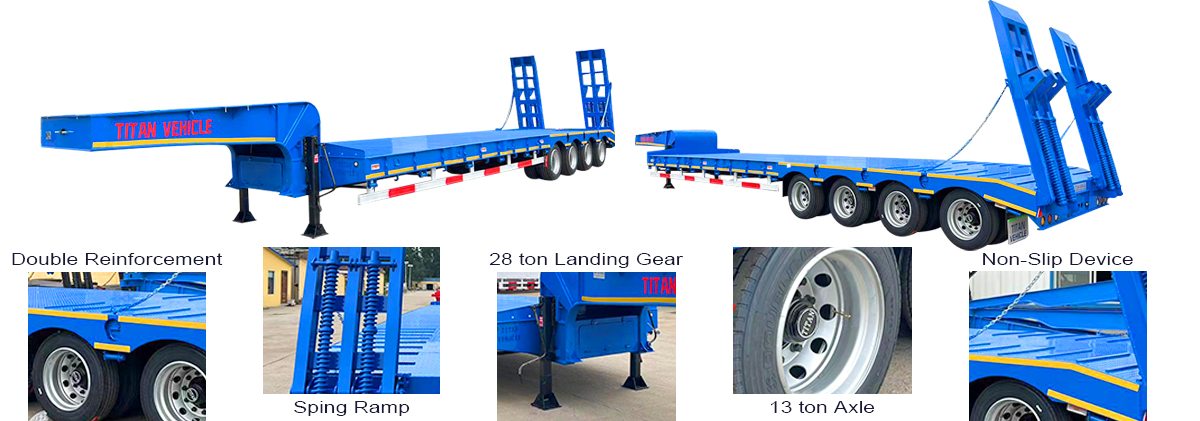

Side beam welding
The side beam is one of the main structural components of the trailer. It is mainly responsible for supporting both sides of the frame, dispersing the weight of the cargo borne by the cargo platform, and ensuring the stability and safety of the trailer during transportation. The side beams of this 100 ton lowbed trailer for sale in Zimbabwe are welded with three-in-one high-strength strip steel, with a strip width of 140mm and a height of 300mm. The three-in-one high-strength strip steel has better strength and durability, making the entire trailer more reliable when carrying heavy objects. Compared with traditional I-beams, the three-in-one high-strength strip steel has higher strength and smaller deformation rate. The side beams can effectively resist deformation when subjected to large weight and impact force, ensuring the structural integrity of the trailer.
The side beams at the tires all adopt a double-layer side beam design, which further enhances its load-bearing capacity and provides better stability and safety.
Ramp welding
This 100 ton lowbed trailer for sale in Zimbabwe is welded with four-in-one high-strength plates, which has extremely high strength and durability and is not easy to deform. It can withstand greater impact and pressure. The welding of the ramp includes the welding of the frame structure and the surface. The frame structure needs to be strictly welded to ensure its stability so that it can withstand the weight and impact of the goods when entering and exiting. The surface of the ramp needs to be processed flat and smooth to facilitate the smooth loading and unloading of goods. In addition, reinforcing ribs are added to the key positions of the ramp for reinforcement to enhance the load-bearing capacity. These reinforcing ribs can effectively disperse the pressure concentrated in specific areas and improve the stability of the overall structure.
Gooseneck reinforcement
The gooseneck bend of this 100 ton lowbed trailer for sale in Zimbabwe is reinforced with steel plates to disperse the stress applied to the gooseneck part. In addition, double webs are used under the gooseneck for reinforcement to enhance the overall load-bearing capacity and bending resistance. The purpose of reinforcing the gooseneck is to improve its strength and durability, so that it can remain stable under various road conditions and prevent deformation or breakage under heavy loads.
Landing gear reinforcement
This 100 ton lowbed trailer for sale in Zimbabwe uses a 28-ton standard landing gear, which is used to better stabilize the trailer when loading and unloading cargo. In addition, steel pipes are added to the landing gear for triangular support. This triangular support structure can not only effectively disperse the weight applied to the landing gear, but also provide additional stability to prevent deformation or instability under heavy loads. This design allows the trailer to dock more firmly when loading and unloading cargo, reducing the safety hazards caused by unstable landing gear. The landing gear can effectively cope with different ground conditions and ensure the safe loading and unloading of cargo, whether it is at a construction site, warehouse or other complex loading and unloading site.
Fast Delivery 4 Axle 100 ton Lowbed Trailer for Sale in Zimbabwe

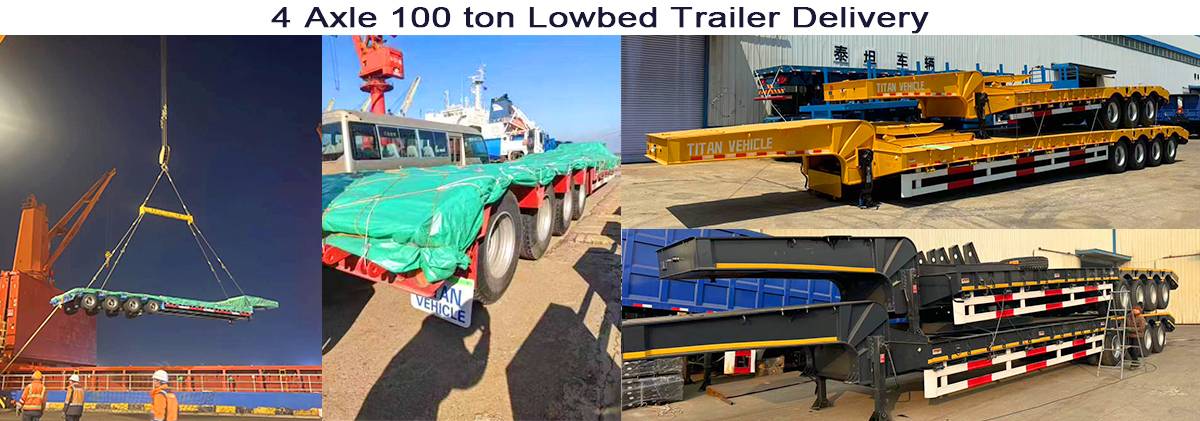

This 100 ton lowbed trailer for sale in Zimbabwe can be transported by container, bulk and roll-on/roll-off. Choosing the right method is crucial to ensure the safe transportation of the trailer.
The cost of transporting lowbed trailers using containers is low, but the volume of lowbed trailers is large, and it is necessary to remove some structures such as ramps to load them into containers. After being transported to the destination, the trailer needs additional assembly and welding, which not only increases labor costs, but may also affect the sturdiness and overall service life of the trailer. Due to the uncertainty in the welding and assembly process, the strength of the connection parts may be insufficient, thereby affecting the safety of the trailer during heavy-load transportation. Therefore, it is not recommended to use containers to transport lowbed trailers to avoid unnecessary risks and additional maintenance work.
In contrast, it is more suitable to use bulk or roll-on/roll-off to transport lowbed trailers. These two modes of transportation can better protect the overall structure of the trailer. However, since lowbed trailers may be affected by seawater erosion, we will wax and cover the trailers with tarpaulins before sending them out. Waxing the surface of the body can form a protective film, effectively isolating it from seawater erosion and reducing the risk of corrosion and rust. In addition, waxing can prevent the accumulation of dirt and salt, keeping the body clean and beautiful. Secondly, we will also cover the trailer with a waterproof tarpaulin, which further enhances the protection effect and ensures that it is not affected by moisture and bad weather during transportation. Through such treatment measures, we can maximize the protection of the structural integrity and appearance quality of the lowbed trailer, ensuring that it can be put into use in the best condition after it arrives at the destination.
Fast Delivery 4 Axle 100 ton Lowbed Trailer for Sale in Zimbabwe
Welcome to contact us !
